Excavator Mounted Blast Hole Drill Rig

Beaver EM 30

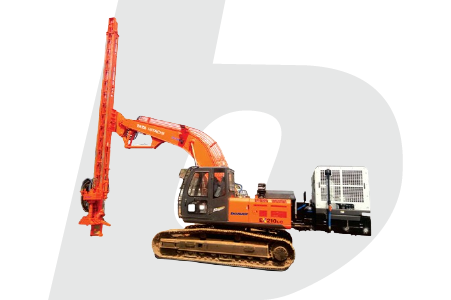

Blast Hole Drill is a versatile hydraulic drill rig, mounted on a TATA Hitachi EX 200 LC Excavator (or any equivalent excavator with onboard compressor, suitable for blast hole drilling in mines, can be easily accessible to drill on bench as well as below the ground level.

blast hole drill

Our Excavator Mounted Blast hole drill is a perfect high-performance solution for a wide variety of drilling applications and can operate in all Terrain conditions. Applications: Suitable for Blast hole drilling in mines, construction works, canal works and solar projects.

S.No	Product	Description
	Drilling Method	DTH
	Drilling Diameter ( Blast hole )	4.5" to 6.5"
	Drilling Depth	30 mtr (100 ft)
	Drilling Diameter ( Solar Project )	12.0"
	Drilling Depth	3 mtr (10 ft)
	Excavator for Mounting	Rig is mounted on 20 ton Excavator
	Prime Mover	The Entire Rig Hydraulic system will be powered by using same Prime Mover of Excavator and separate suitable Direction control valves will be provided for working of the Drill Rig.
	Mast	Suitable to handle drill rod of length 20 ft. (6mtr)
	Centralizer Opening	10.6" (standard) / 14.0" (solar project)
	Pull-up Force	4100 kgf
	Pull-down Force	2500 kgf
	Rotary Head Torque	260 kg. mtr
	Breakout Arrangement	The Drill rig is equipped with hydraulically operated breakout wrench for tightening and loosening of Drill Rods and Hammer.
	Max Operating pressure	160 Kg/Cm2
	Water Injection Pump	36 LPM / 80 LPM
	Dust Collector (Optional)	Heavy duty dust collector is provided for collecting the drilling dust.
	Rod Carousel (Optional)	The drill Rig is equipped with hydraulically operated rod carousel for changing, coupling and uncoupling of drill rods.

S.No

Product

Description

Drilling Method

DTH

Drilling Diameter ( Blast hole )

4.5" to 6.5"

Drilling Depth

30 mtr (100 ft)

Drilling Diameter ( Solar Project )

12.0"

Drilling Depth

3 mtr (10 ft)

Excavator for Mounting

Rig is mounted on 20 ton Excavator

Prime Mover

The Entire Rig Hydraulic system will be powered by using same Prime Mover of Excavator and separate suitable Direction control valves will be provided for working of the Drill Rig.

Mast

Suitable to handle drill rod of length 20 ft. (6mtr)

Centralizer Opening

10.6" (standard) / 14.0" (solar project)

Pull-up Force

4100 kgf

Pull-down Force

2500 kgf

Rotary Head Torque

260 kg. mtr

Breakout Arrangement

The Drill rig is equipped with hydraulically operated breakout wrench for tightening and loosening of Drill Rods and Hammer.

Max Operating pressure

160 Kg/Cm2

Water Injection Pump

36 LPM / 80 LPM

Dust Collector (Optional)

Heavy duty dust collector is provided for collecting the drilling dust.

Rod Carousel (Optional)

The drill Rig is equipped with hydraulically operated rod carousel for changing, coupling and uncoupling of drill rods.

Note:

In view of continuous R&D and product improvement programme all specification; features etc. are subjected to amendments without prior notice.

BEAVER drilling rigs can be supplied in custom-built models in various configurations and Mounting features to suit all special requirements.
