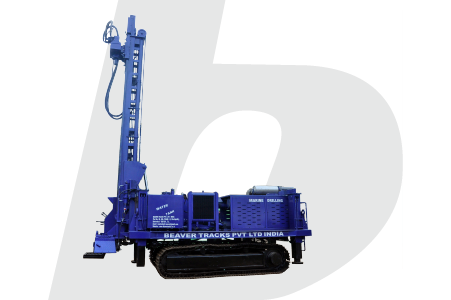

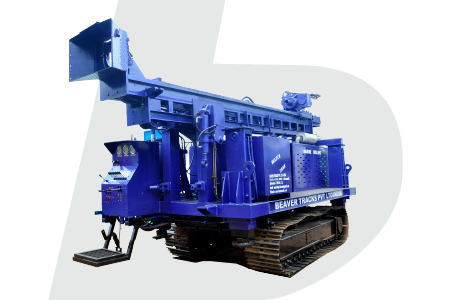

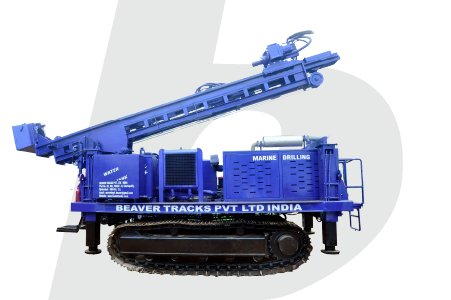

BEAVER CDR 300 water well drilling rig Model, Crawler Mounted top drive DTH drill rig capable of drilling in different formations such as medium to hard rock by DTH method, up to a depth of 300 Meters. Under favorable drilling condition. Detailed specification as follows.
TECHNICAL SPECIFICATIONS
| S.No | Product | Description |
|---|---|---|
| Capacity : Drilling Capacity | Hole Diameter 6 ½” Max. Depth 300 mts | |
| Type Of Drilling | DTH Drilling | |
| Prime Mover | Deck Engine | |
| Hydraulic Pumps | Piston Pumps | |
| Maximum operating pressure | 300 Bar | |
| Hydraulic oil tank capacity | 600 lts. | |
| Mast | Suitable to handle 10 ft | |
| Mast construction | Channel Structure | |
| Centralizer opening | 300 mm | |
| Pull Up Force | 15,000 Kg | |
| Pull Down Force | 7,000 Kg | |
| Pull Up Speed | 63 Mts/ Min | |
| Rotaion Speed | 0 to 100 RPM | |
| Maximum Torque | 324 Kg mts | |
| Hydraulic jacks | 4 Nos. of 140X100X610 mm Stroke Jacks | |
| Water Injection Pump | 80 LPM @ 40 Bar | |
| Break Out winch | BOW Ø100mm X 300 mm stroke | |
| Recommended Air Compressor* | Atlas Copco / ELGI / Doosan Compressor capacity 1100 CFM / 300 PSI 1200 CFM / 330 PSI |
